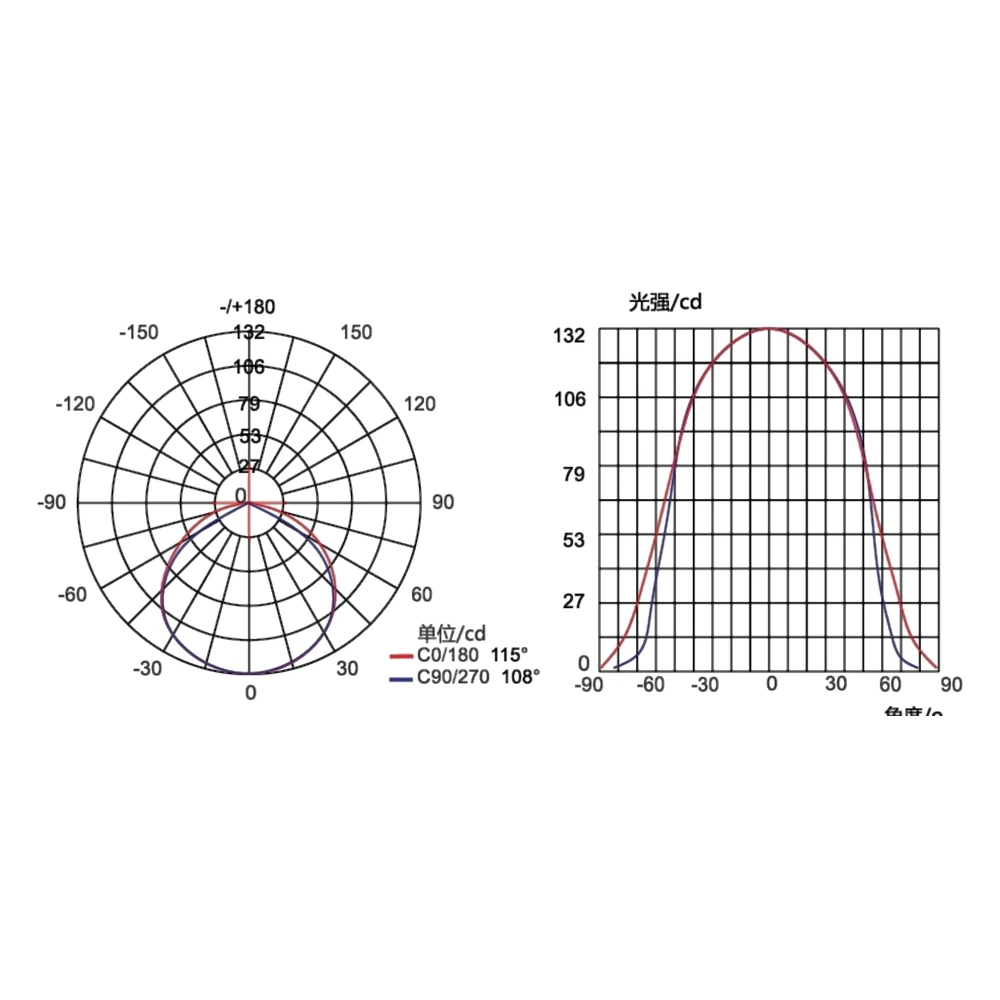

Product photo, dimension drawing and lighting curve from the manufacturer's catalogue.

Façade & Architectural · Linear Façade Lights

U201 Linear Façade Light, 1 m, 12 W, IP66

A compact 25 × 45 mm aluminium linear with a rounded PC diffuser for continuous outline lighting. Available as single-colour static, RGB or RGBW with parallel DMX control, it is sized for building edges, parapets and canopy lines where a soft, even line of light is wanted.

Technical Specifications

Light source: 48 pcs SMD5050 LEDs
Colour options: Single colour (W / NW / R / G / B / Y), RGB, RGBW — see versions
Colour range: RGB full colour, 16,777,216 colours (RGB / RGBW versions)
Control protocol: Static single colour (A) · Parallel DMX (D, G)
Gray scale: 256 / 65,536 (D, G)
Voltage: 24V DC
Wattage: 12 W/m (A, D) · 14.4 W/m (G)
Light intensity: 120 cd/m (A, D) · 150 cd/m (G)
LED brand: Epistar / CREE / Osram
Material: High-strength aluminium alloy, PC diffuser; rubber cable
Pixels: 8 per unit (D, G) · none (A)
Fault feedback: No
IP rating: IP66
Beam angle: 120°
Working temp.: −30 °C to 50 °C
Storage temp.: −40 °C to 70 °C
Lifespan: 50,000 h

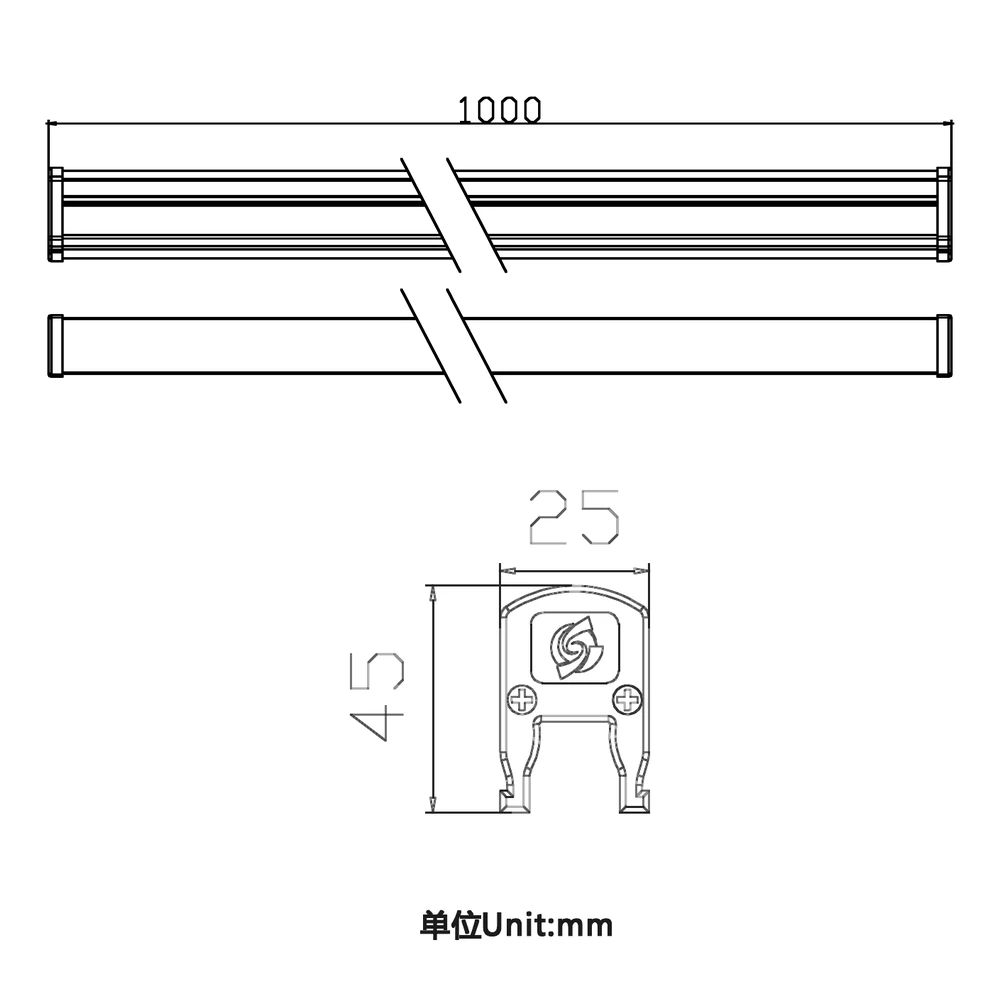

Size: 1000 × 25 × 45 mm
Weight: 700 g

Applications

Building outlines & façades
Bridges
Landmarks & monuments
Hotels & hospitality frontages

Models & Variants

Model	Power	Intensity	Version
U201A	12 W/m	120 cd/m	Single colour W/NW/R/G/B/Y · static
U201D	12 W/m	120 cd/m	RGB · parallel DMX · 256/65,536 · 8 px
U201G	14.4 W/m	150 cd/m	RGBW · parallel DMX · 256/65,536 · 8 px
