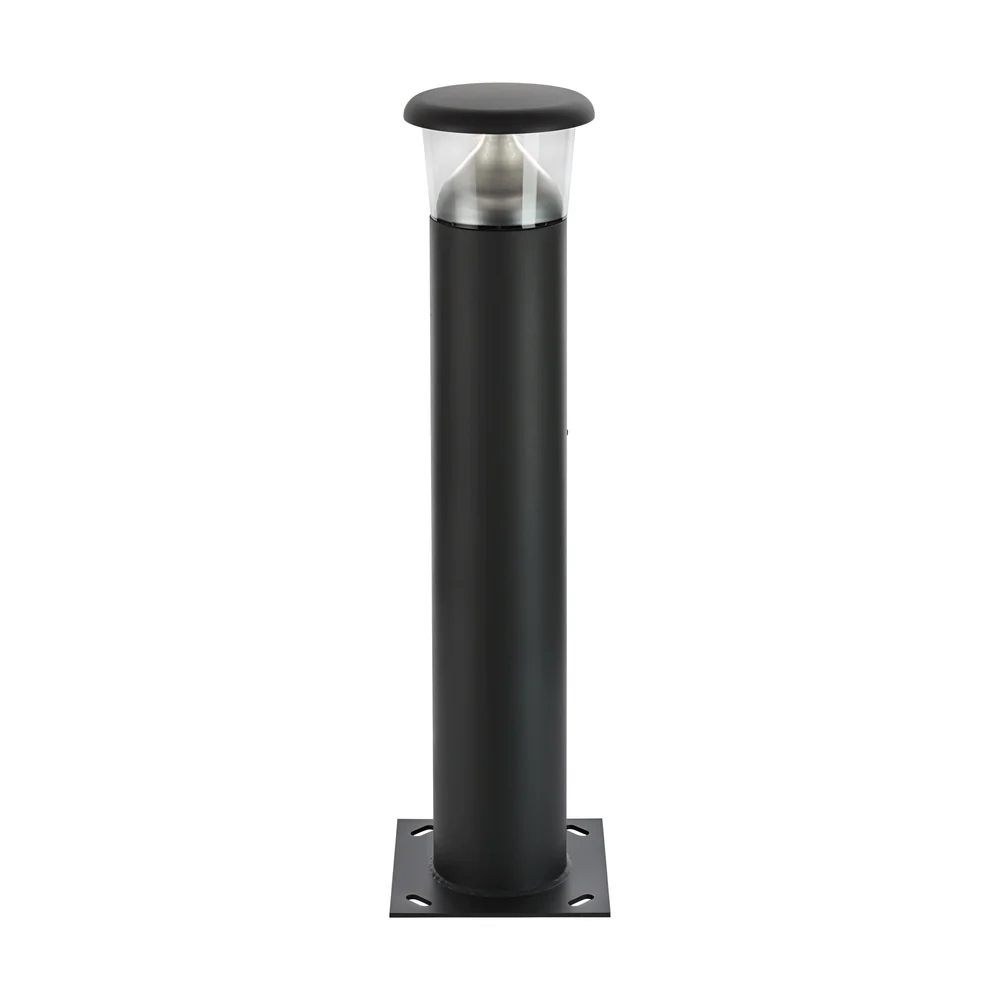

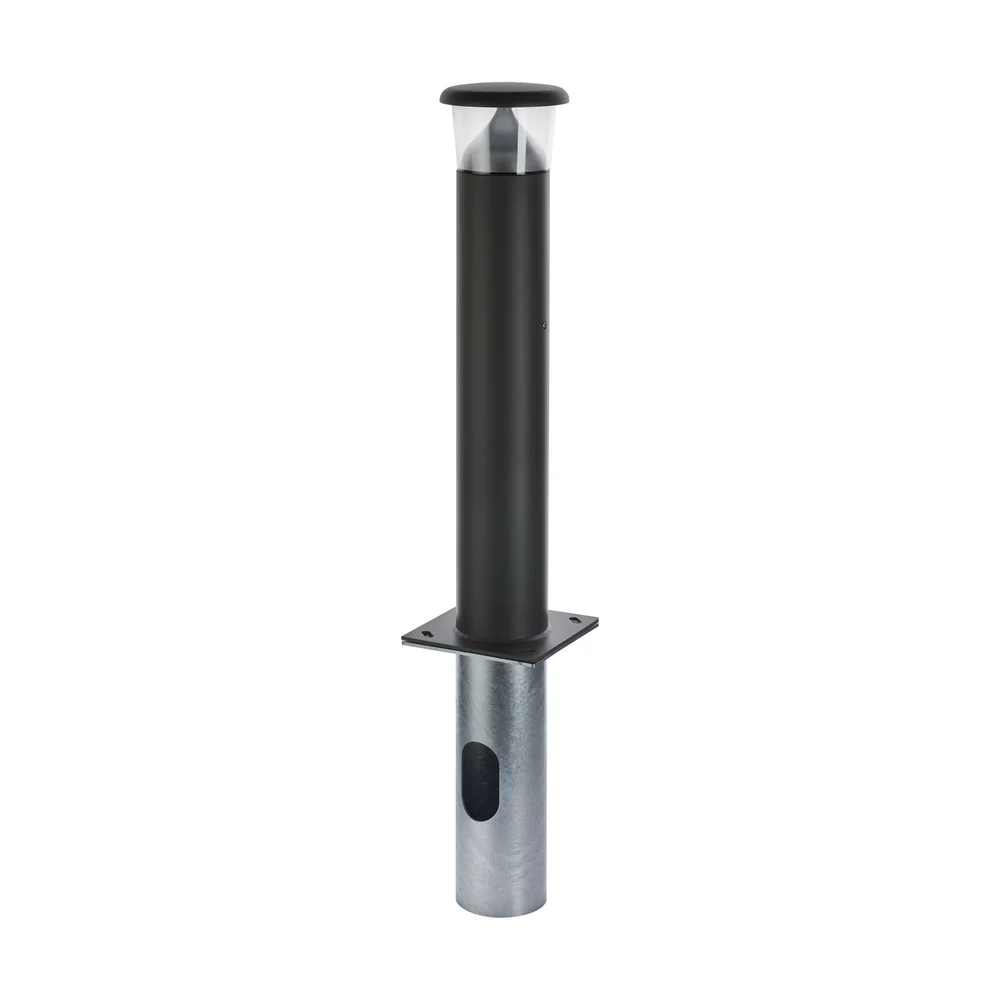

Philips (Signify) OptiSpace BCB500 LED Bollard — view 1

Bollards & Garden

Official Philips (Signify) product photo, as published by the manufacturer. Datasheets on request.

Outdoor · Bollards & Garden

PhilipsBrand: Philips (Signify) · Model: BCB500 LED56-4S/740 S DGR · 3 models

OptiSpace BCB500 LED Bollard

Die-cast aluminium LED bollard for parks, pedestrian paths, building forecourts and car parks, with symmetric or asymmetric optics and 4000K light. It is rated IP66 and IK10, has 6 kV surge protection and a replaceable LED engine, and works from -40 to +50°C.

Technical Specifications

Series: OptiSpace BCB500
Power: 11.3W / 20W / 37.2W
Voltage: 220-240V
Luminous flux: 1,432 lm / 2,400 lm / 4,900 lm
Efficacy: 127 / 167 / 173 lm/W
Colour temperature: 4000K
CRI: 70
Beam angle: 177° (symmetrical) / 7°-9° x 177° (asymmetrical)
IP rating: IP66
IK rating: IK10 (20 J)
Dimming: Not dimmable
Driver: Power supply unit included (on/off)
Power factor: 0.89-0.98
Size: H848 mm, 270 x 270 mm base, Ø168 mm / H1004 mm, Ø232 mm
Material: Die-cast aluminium housing; PMMA optic; polycarbonate cover
Colour: Black (Ultra Dark Grey)
Operating temperature: -40 to +50°C ambient
Surge protection: 6 kV differential and common mode
Warranty: 5 years

Applications

Parks
Pedestrian paths
Building forecourts
Car parks

Models & Variants

Model	Power	Lumens	Beam	Size	Version
BCB500 LED56-4S/740 S DGR	37.2W	4,900 lm	177°	H848 mm	12NC 912300024101; symmetrical; safety class I; fits Ø42-60 mm post
BCB500 LED27-4S/740 ANB14 II A DGR	20W	2,400 lm	7°-9° x 177°	H848 mm	12NC 912300024103; asymmetrical; safety class II; fits Ø42-60 mm post
BCB500 LED16-4S/740 PSU II S DGR MSP CLO	11.3W	1,432 lm	177°	H1004 mm	12NC 912300060280; symmetrical; baseplate; marine-salt-protected coating; constant light output; safety class II
