PhilipsBrand: Philips · Model: 9290 016 69506 · 2 models

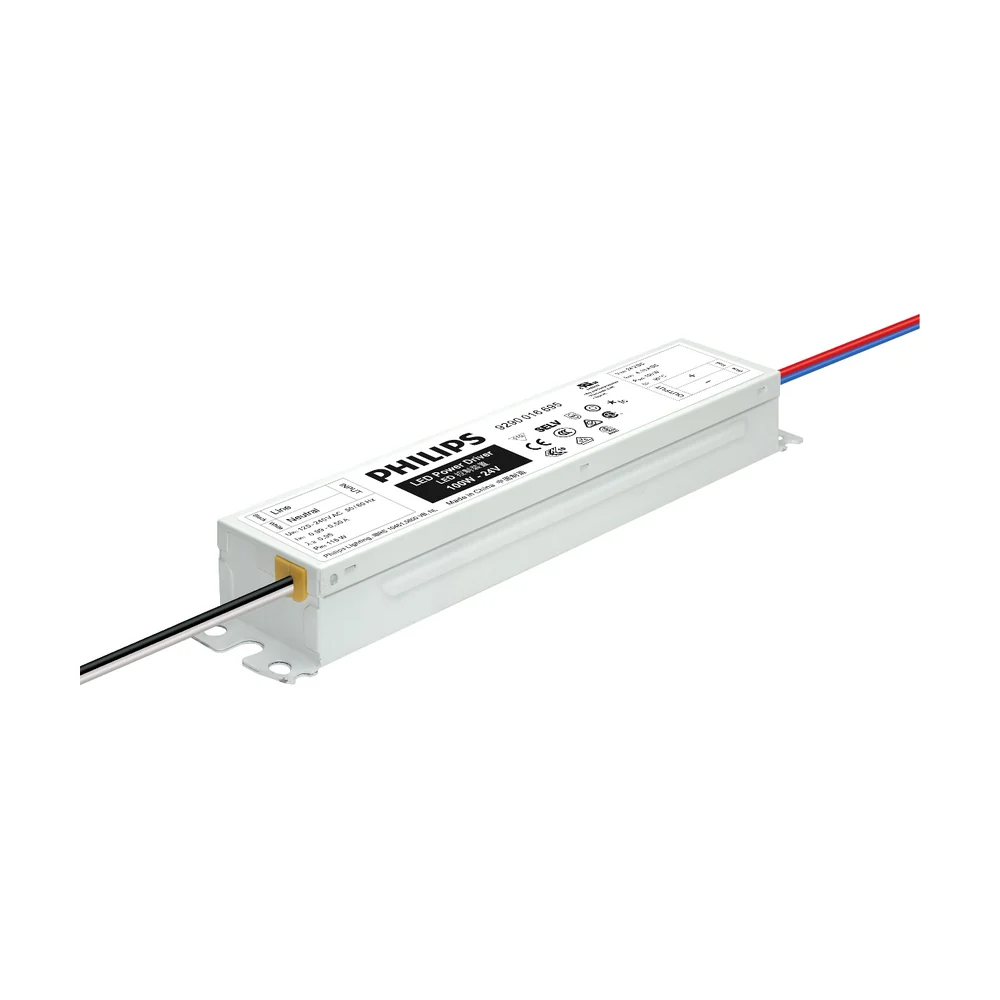

LED Power Driver 24V 120-240V
Constant-voltage 24V DC LED power driver in 80W and 100W versions for retail display, shelf, cove and facade accent lighting. It accepts 120V or 230V mains, works from -30 to +60°C and carries UL Class 2 and SELV approvals.
Technical Specifications
- Series
- LED Power Driver
- Power
- 2.4-80W / 2.4-100W
- Voltage
- Input 108-132V / 202-254V AC (performance range); output 24V DC constant voltage
- Current
- Output 0.1-3.3A (80W) / 0.1-4.16A (100W)
- IP rating
- IP20
- Driver
- UL Class 2 / SELV
- Power factor
- 0.96 (80W) / 0.97 (100W) at 230V
- Lifetime
- 50,000 hours
- Size
- 241.3 x 43.1 x 30 mm
- Weight
- 640 g
- Operating temperature
- -30 to +60°C ambient
- Efficiency
- 86% at 120V / 88% at 230V
- Max cable length
- 2.5 m
- Certification
- CCC, CE, CSA, ENEC, RCM, SELV, UL Class 2, UL Recognized, VDE
Applications
- Retail display
- Cove lighting
- Facade accent lighting
- Refrigerated display
Models & Variants
| Model | Power | Size | Version |
|---|---|---|---|
| 9290 016 69406 | 80W | 241.3 x 43.1 x 30 mm | LED Power Driver 80W 24V 120-240V |
| 9290 016 69506 | 100W | 241.3 x 43.1 x 30 mm | LED Power Driver 100W 24V 120-240V |
Key Features
- 24V DC constant voltage
- 120V and 230V input
- UL Class 2 / SELV
- -30 to +60°C operation
