PhilipsBrand: Philips · Model: 9290 039 19880

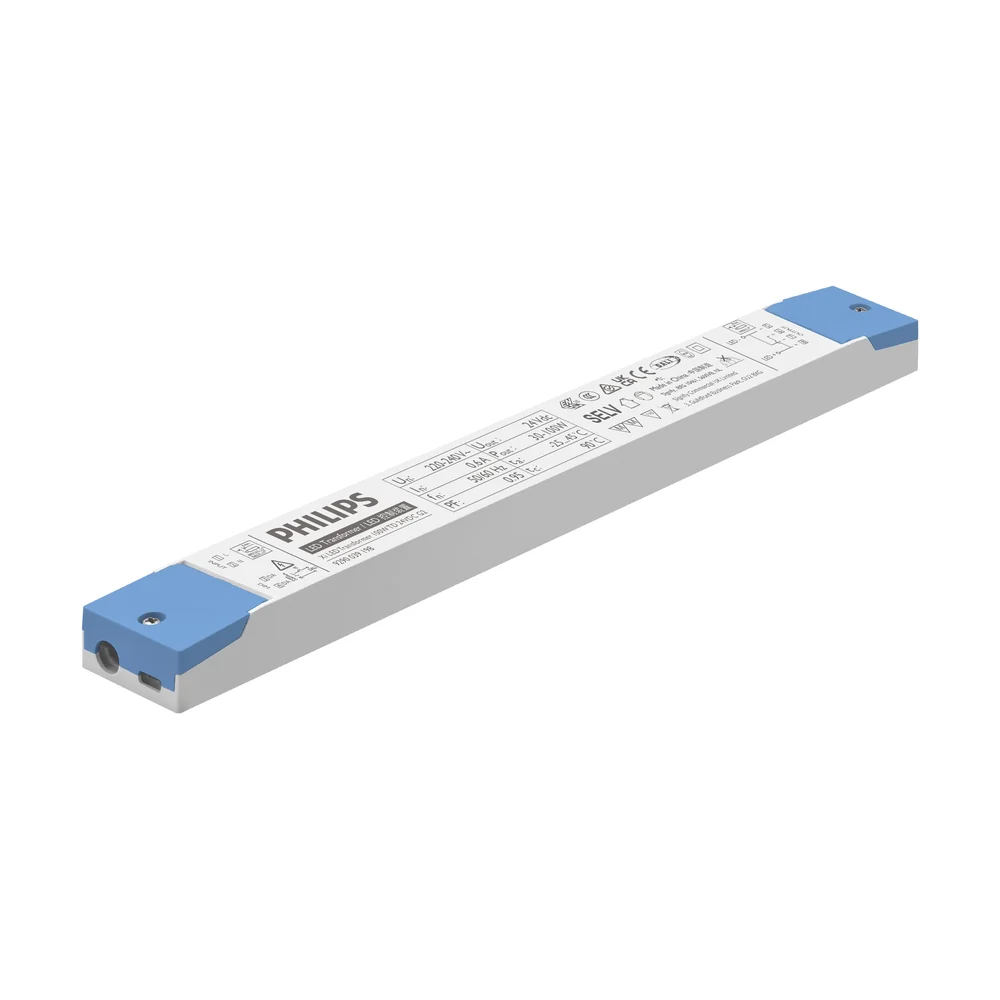

Xitanium LED Transformer 100W TD 24VDC G2 (DALI-2 / Touch & Dim)
Slim 100W constant-voltage 24V DC LED driver with DALI-2 and Touch & Dim control, dimming from 1 to 100% at 2 kHz PWM. Its 350 x 30 x 18 mm body fits shelves, coves and joinery where dimmable LED strip is specified.
Technical Specifications
- Series
- Xitanium LED Transformer G2
- Power
- 30-100W (rated 100W)
- Voltage
- Input 220-240V AC (198-264V operational); output 24V DC constant voltage
- Current
- Rated output 4166 mA (1250-4166 mA range)
- IP rating
- IP20
- Dimming
- DALI-2 and Touch & Dim; 1-100% (PWM 2 kHz)
- Driver
- Reinforced input-output isolation
- Power factor
- 0.95
- Lifetime
- 50,000 hours
- Size
- 350 x 30 x 18 mm
- Weight
- 260 g
- Operating temperature
- -25 to +45°C ambient
- Efficiency
- 92% at rated output
- Ripple
- ≤ 1% (< 240 mVpp)
- Max cable length
- 2.5 m
- Certification
- CB, CCC, CE, DALI 2, ENEC, KC, MM, RCM, SELV, UKCA
Applications
- Dimmable LED strip
- Coves and shelves
- Hospitality
Key Features
- DALI-2
- Touch & Dim
- 1-100% dimming
- Slim 18 mm profile
No online pricing — quotes are prepared per project, including supply and installation where needed.
