Xitanium LED Transformer 24VDC G2
Constant-voltage 24V DC LED driver in 30W, 60W and 150W sizes for LED strip, cove and display lighting. It is built for independent or built-in use, with SELV output, a power factor of at least 0.95 and a 50,000-hour rated life.
Technical Specifications
- Series
- Xitanium LED Transformer G2
- Power
- 1.5-30W / 3-60W / 7.5-150W
- Voltage
- Input 220-240V AC (198-264V operational); output 24V DC constant voltage
- Current
- Output 63-1250 mA / 125-2500 mA / 310-6250 mA
- IP rating
- IP20
- Dimming
- Not dimmable (fixed)
- Driver
- SELV; built-in or independent use
- Power factor
- ≥ 0.95
- Lifetime
- 50,000 hours
- Operating temperature
- -20 to +50°C ambient
- Efficiency
- 86% / 87% / 92% at rated output
- Ripple
- ≤ 2% (≤ 480 mVpp)
- Max cable length
- 2.5 m
- Certification
- CCC, CE, ENEC, MM, RCM, SELV, UKCA
Applications
- LED strip and cove lighting
- Retail display
- Signage
Models & Variants
| Model | Power | Size | Version |
|---|---|---|---|

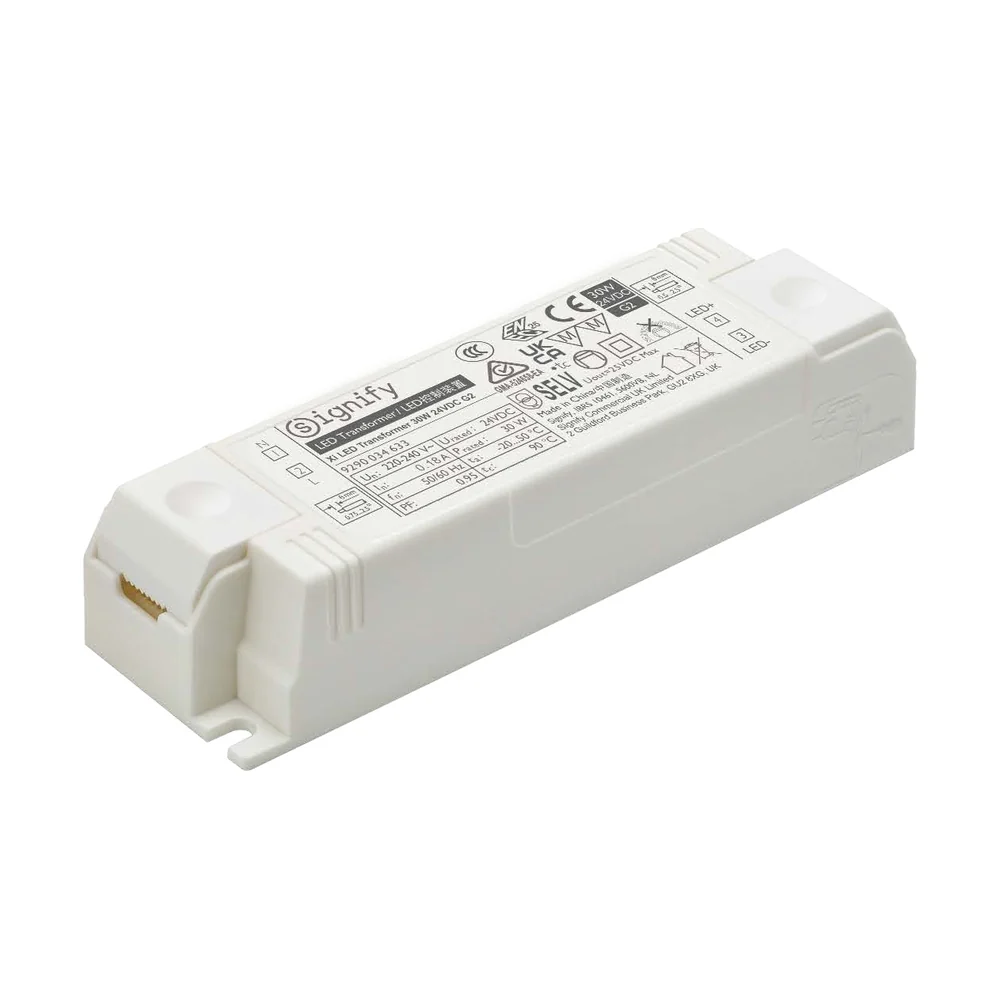

| 9290 034 63302 | 30W | 135 x 36 x 25 mm | Xi LED Transformer 30W 24VDC G2; 88 g; efficiency 86% |

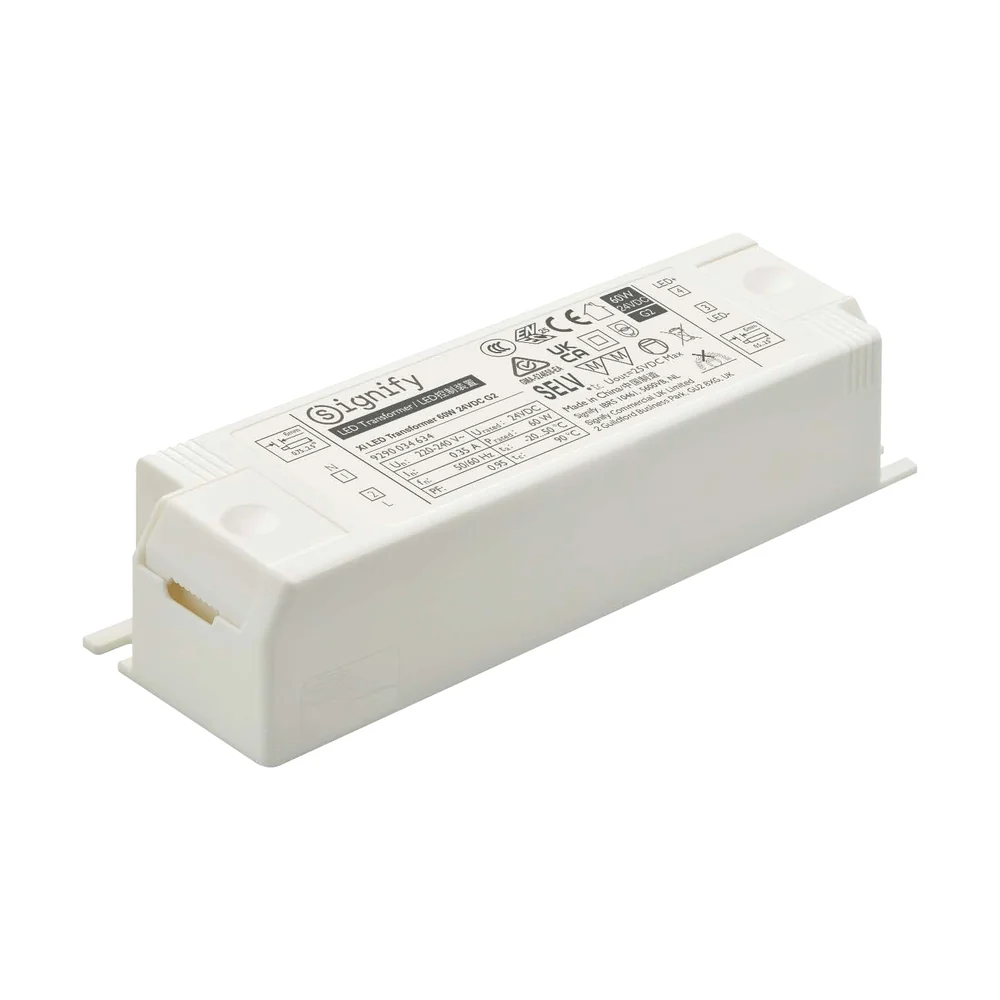

| 9290 034 63402 | 60W | 151.5 x 40.2 x 31 mm | Xi LED Transformer 60W 24VDC G2; 200 g; efficiency 87% |

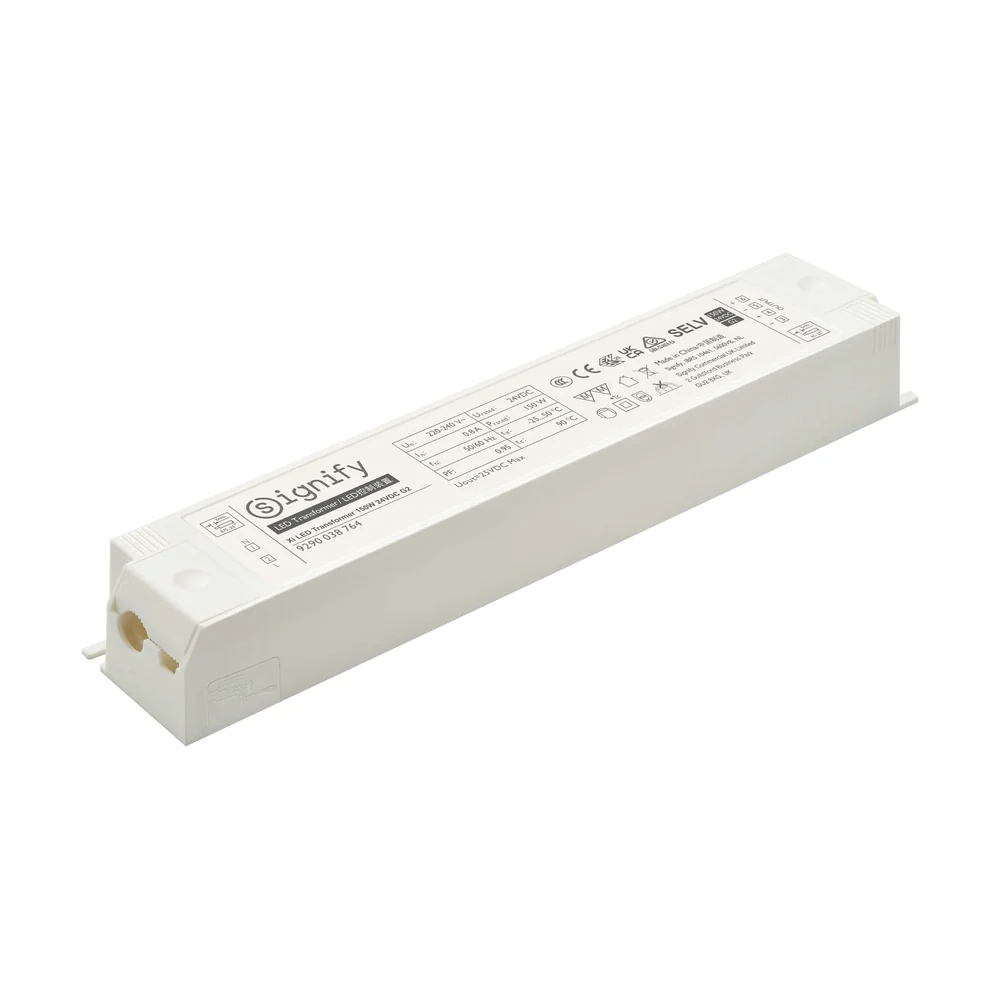

| 9290 038 76402 | 150W | 253.2 x 42.5 x 31 mm | Xi LED Transformer 150W 24VDC G2; 438 g; efficiency 92% |
Key Features
- 24V DC constant voltage
- SELV output
- PF ≥ 0.95
- Built-in or independent use
No online pricing — quotes are prepared per project, including supply and installation where needed.
