Electrical · Switches & Sockets
MKBrand: MK · Model: K4871WHI · 5 models

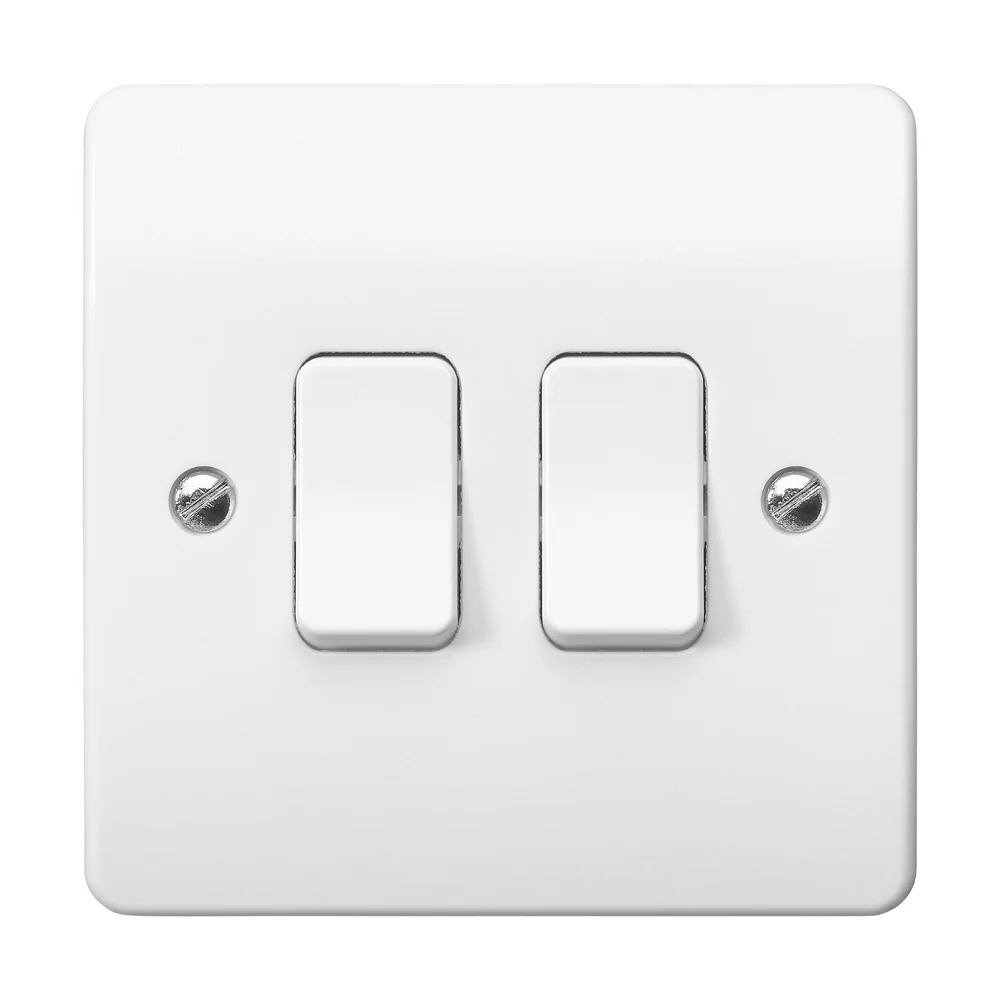

Logic Plus 10A 2-Way Plateswitch
Logic Plus 10A single-pole plateswitch that can be wired one-way or two-way, from 1 to 6 gangs. It needs no derating for fluorescent or inductive loads, so it suits general lighting circuits in residential and commercial fit-outs.
Technical Specifications
- Series
- Logic Plus
- Size
- 86 x 86 mm (1-3 gang) / 86 x 146 mm (4 & 6 gang)
- Material
- Urea formaldehyde (antibacterial, ISO 22196 tested)
- Colour
- White
- Mounting
- Flush; fixing centres 60.3 mm (1-3 gang) / 120.6 mm (4 & 6 gang)
- Poles
- Single pole
- Rated current
- 10A
- Gang
- 1, 2, 3, 4 or 6
- Ways
- 2-way (can be wired 1-way or 2-way)
- Contact gap
- 3 mm
- Standard
- BS EN 60669-1:1999
- Warranty
- 30-year guarantee
Applications
- Residential
- Offices
- Retail fit-outs
Models & Variants
| Model | Size | Version |
|---|---|---|
| K4871WHI | 86 x 86 mm | 1-gang |
| K4872WHI | 86 x 86 mm | 2-gang |
| K4873SAWHI | 86 x 86 mm | 3-gang |
| K4874WHI | 86 x 146 mm | 4-gang |
| K4879WHI | 86 x 146 mm | 6-gang |
Key Features
- No derating for fluorescent / inductive loads
- 1-way or 2-way wiring
- 3 mm contact gap
- Antibacterial moulding
