MKBrand: MK · Model: K2757WHI · 2 models

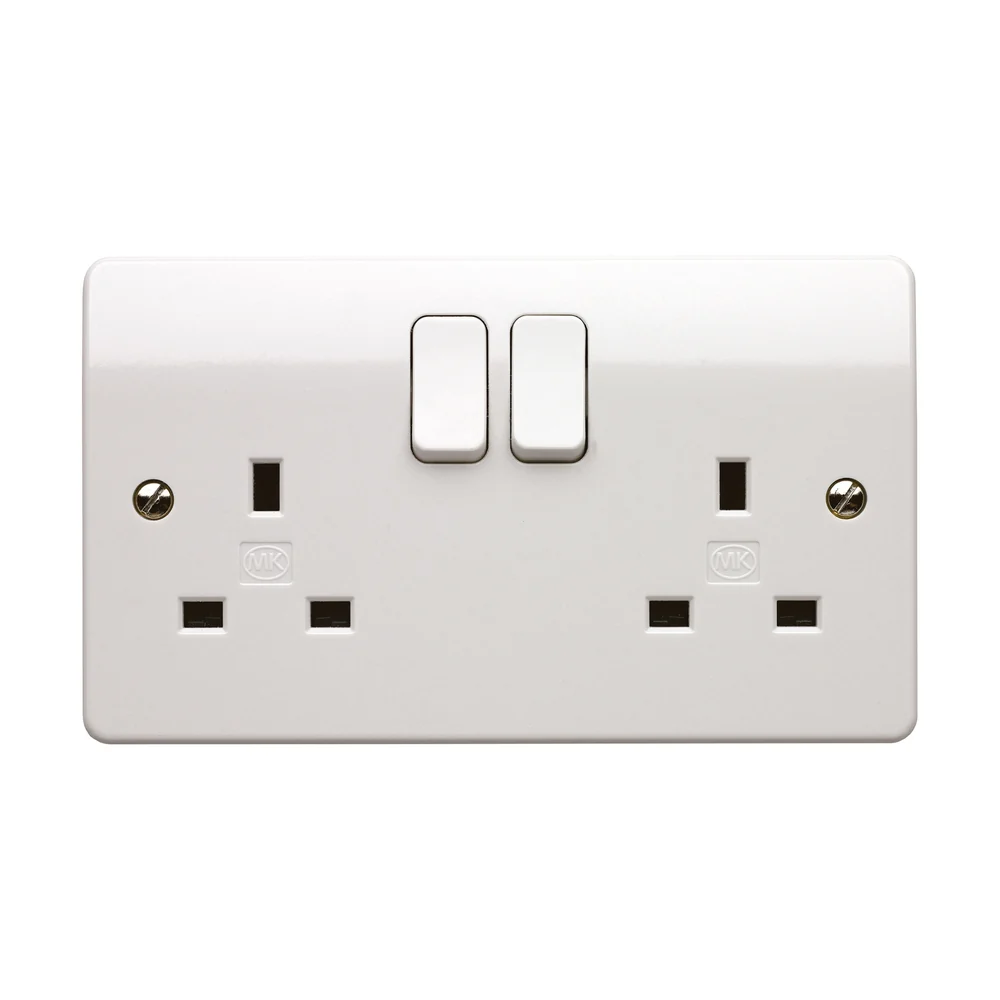

Logic Plus 13A DP Switched Socket
White Logic Plus 13A double-pole switched socket for BS 1363 installations in villas, apartments and offices. It has a child-resistant 3-pin shutter and an antibacterial urea-formaldehyde moulding. Available in 1-gang and 2-gang versions.
Technical Specifications
- Series
- Logic Plus
- IP rating
- IP2XD
- Size
- 86 x 86 mm (1-gang) / 86 x 146 mm (2-gang)
- Material
- Urea formaldehyde (antibacterial, ISO 22196 tested)
- Colour
- White
- Mounting
- Flush; fixing centres 60.3 mm (1-gang) / 120.6 mm (2-gang)
- Poles
- 2 (double pole)
- Rated current
- 13A
- Gang
- 1-gang (K2757WHI) / 2-gang (K2747WHI)
- Terminal capacity
- 3 x 2.5 mm² / 3 x 4 mm² / 2 x 6 mm²
- Standard
- BS 1363-2:2016+A1:2018
Applications
- Residential
- Offices
- Hotels
- Schools
Models & Variants
| Model | Size | Version |
|---|---|---|
| K2757WHI | 86 x 86 mm | 1-gang DP with dual earth terminals |
| K2747WHI | 86 x 146 mm | 2-gang DP |
Key Features
- Child-resistant 3-pin shutter
- Neutral make-first, break-last
- Antibacterial moulding
- Double-pole switching
