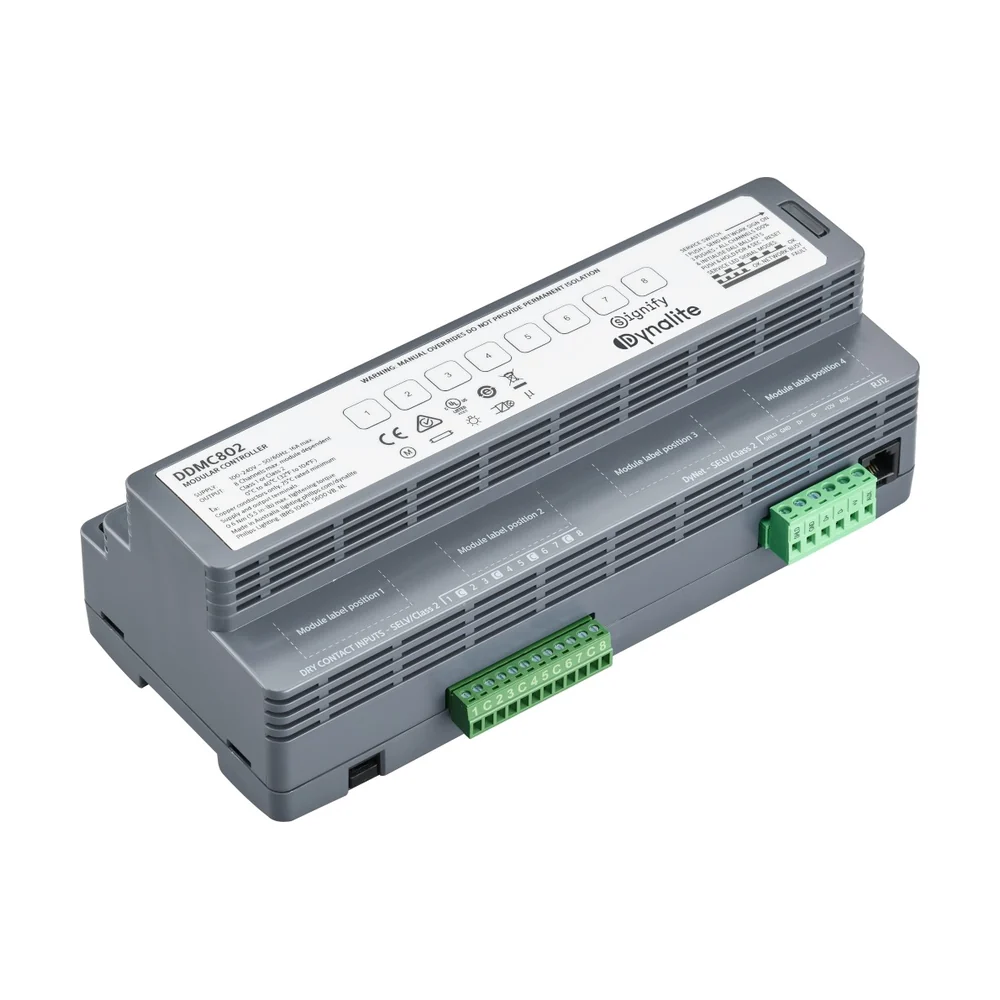

PhilipsBrand: Philips Dynalite · Model: DDMC802
Multipurpose Modular Controller
Modular DIN-rail controller with four bays giving up to eight output channels; plug-in modules cover relay, leading or trailing-edge dimming, signal dimming, fan and curtain control. One unit can run mixed loads in villas, hotel suites and offices.
Technical Specifications
- Series
- Multipurpose controllers
- Voltage
- 100-240V AC
- Current
- 16A supply
- Dimming
- 16-bit fade
- Size
- 105 x 216 x 74 mm
- Weight
- 0.52 kg (packed)
- Material
- Polycarbonate DIN rail enclosure (12 unit)
- Mounting
- DIN rail
- Installation
- Indoor only
- Operating temperature
- 0 to 40°C ambient
- Outputs
- 8 (4 x 2-channel module bays)
- Protocols
- DyNet (RS-485), DMX Rx
- Dry contact inputs
- 9 (8 + AUX)
- Certification
- CE, RCM, UL/cUL, FCC, ISED, UKCA, RoHS
Applications
- Villas
- Hotel suites
- Offices
Key Features
- 4 module bays
- Relay / dimmer / fan / curtain modules
- 9 dry contact inputs
No online pricing — quotes are prepared per project, including supply and installation where needed.
