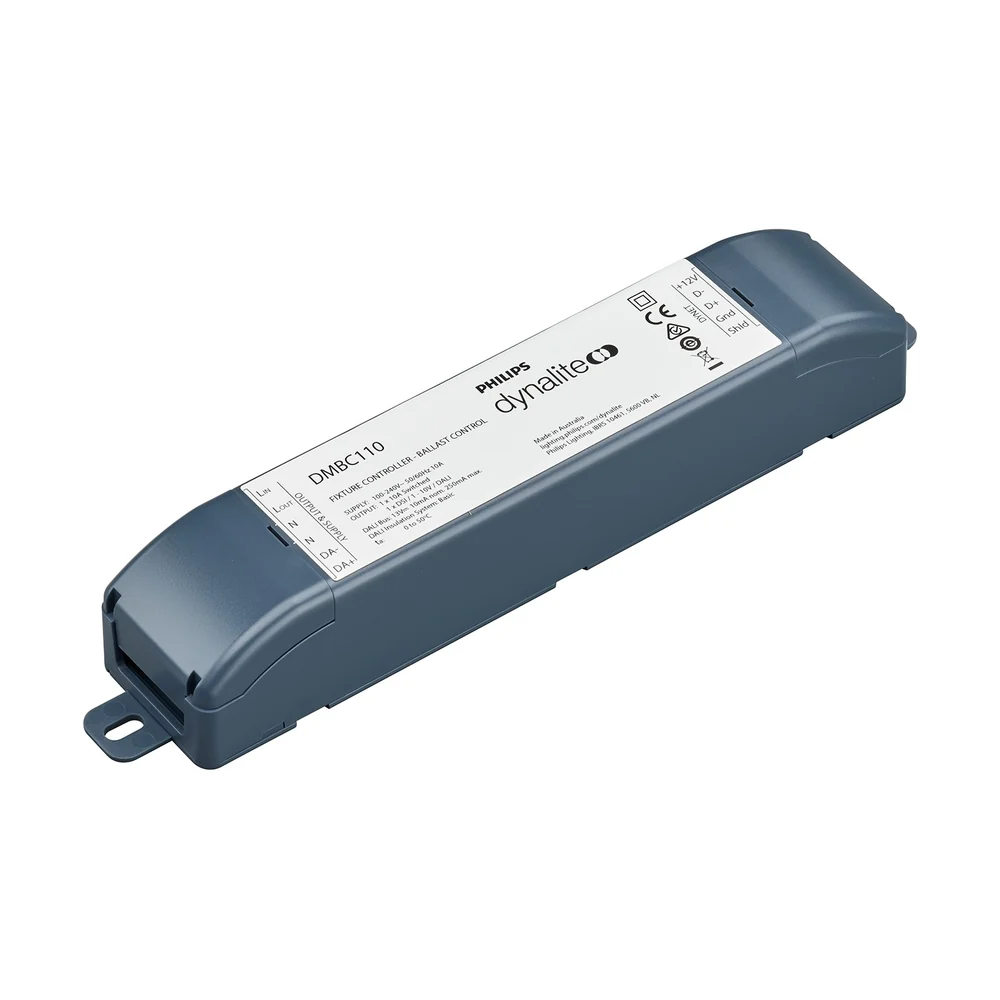

DMX & ControlsPhilips Dynalite product photo from the manufacturer's catalogue. Datasheets on request.
Smart & Controls · DMX & Controls
PhilipsBrand: Philips Dynalite · Model: DMBC110
Luminaire-Mount Signal Dimmer Controller
Compact controller that mounts within the gear enclosure of many light fixtures, with one 10A relay and one DALI broadcast, 1-10V or DSI output. It brings individual fittings or small groups onto a DyNet or DMX network in retail, hospitality and offices.
Technical Specifications
- Series
- Signal dimmer controllers
- Voltage
- 230V AC ±14%
- Current
- 10A supply
- Size
- 38 x 240 x 45 mm
- Weight
- 0.19 kg (packed)
- Material
- Polycarbonate
- Mounting
- Within the gear enclosure of many light fixtures
- Installation
- Indoor only
- Operating temperature
- 0 to 50°C ambient
- Outputs
- 1 x 10A relay (inductive); 1 x DALI broadcast / 1-10V / DSI
- Protocols
- DyNet (RS-485), DMX Rx (1 channel)
- Certification
- CE, RCM, UKCA, RoHS
Applications
- Retail
- Hospitality
- Offices
Key Features
- DALI broadcast / 1-10V / DSI
- 10A relay
- DyNet or DMX input
No online pricing — quotes are prepared per project, including supply and installation where needed.
